Technology Overview
USB is simple which is why every device has a USB port on it; your PC, Mac, smartphone, tablet, Chromebook. DisplayLink USB graphics leverages this universal connector to allow docking and graphics across a wide range of platforms. This makes docking as simple as any USB device.
DisplayLink has a range of devices to support different technology needs from USB2 to USB3, Ethernet and a full range of monitors resolution from HD (1920×1080) to UHD (3840×2160), Cinema 4K (4096×2160) and 5K (5120×2880). DisplayLink devices support all common monitor interfaces such as VGA, DVI, HDMI and DisplayPort (DP).

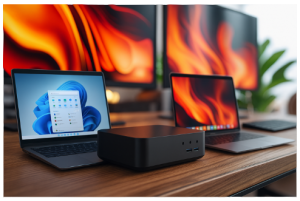

DisplayLink ICs also support different products such as docks, travel docks or graphics adapters.

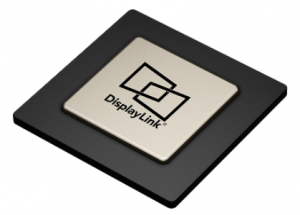

DisplayLink Integrated Chipsets (ICs)
DisplayLink provide a range of ICs for a single display on USB 2.0, to solutions for 5K displays, USB 3.0 docking and wireless displays.

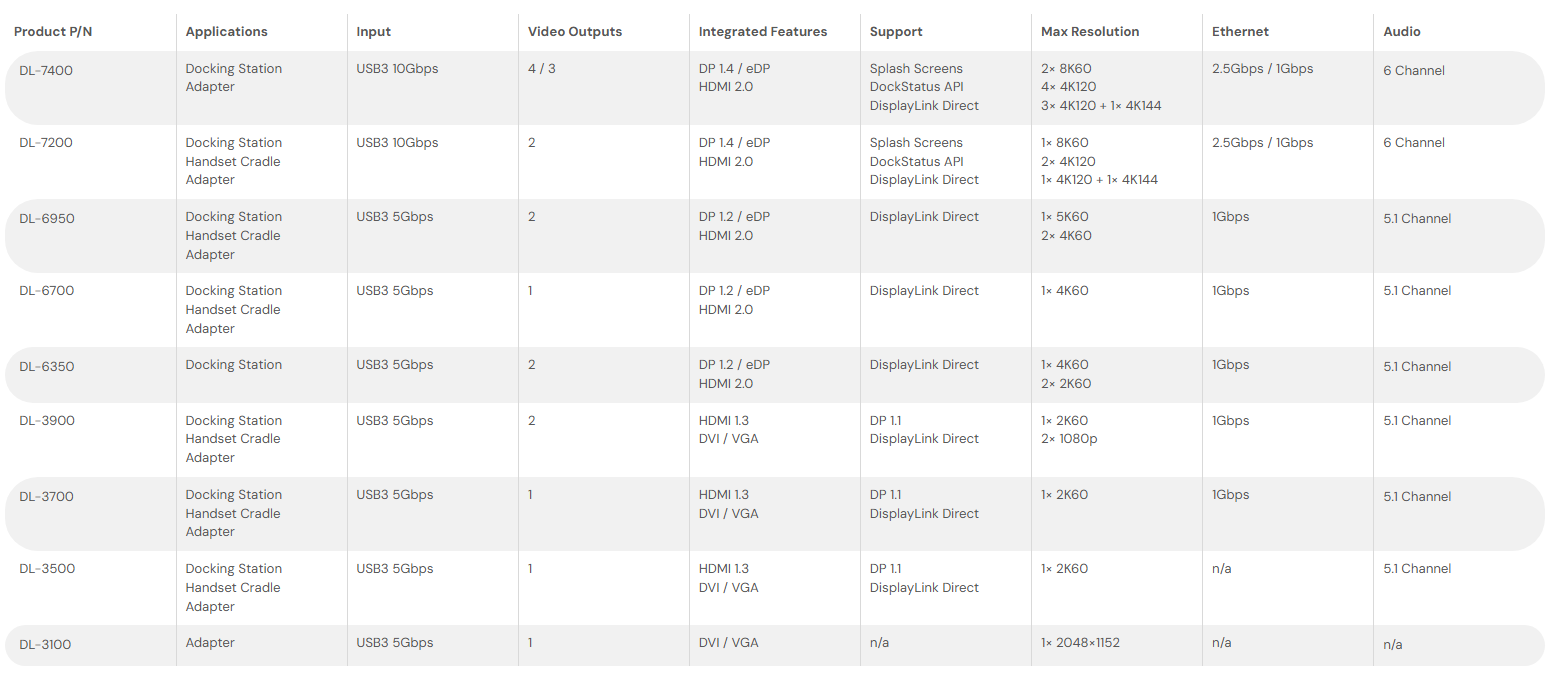

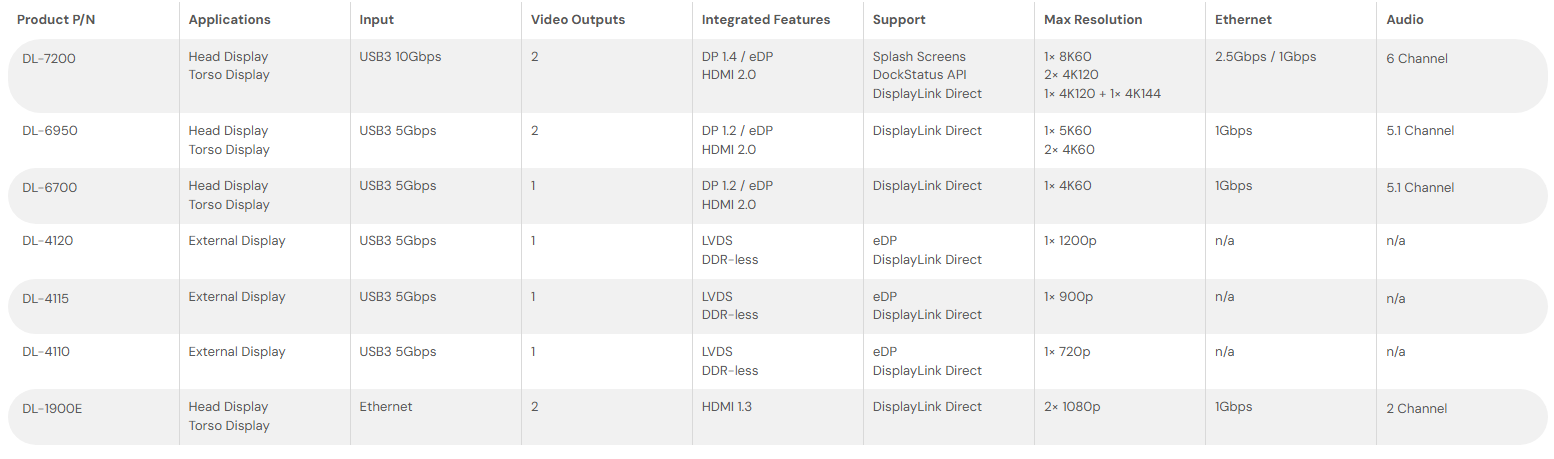

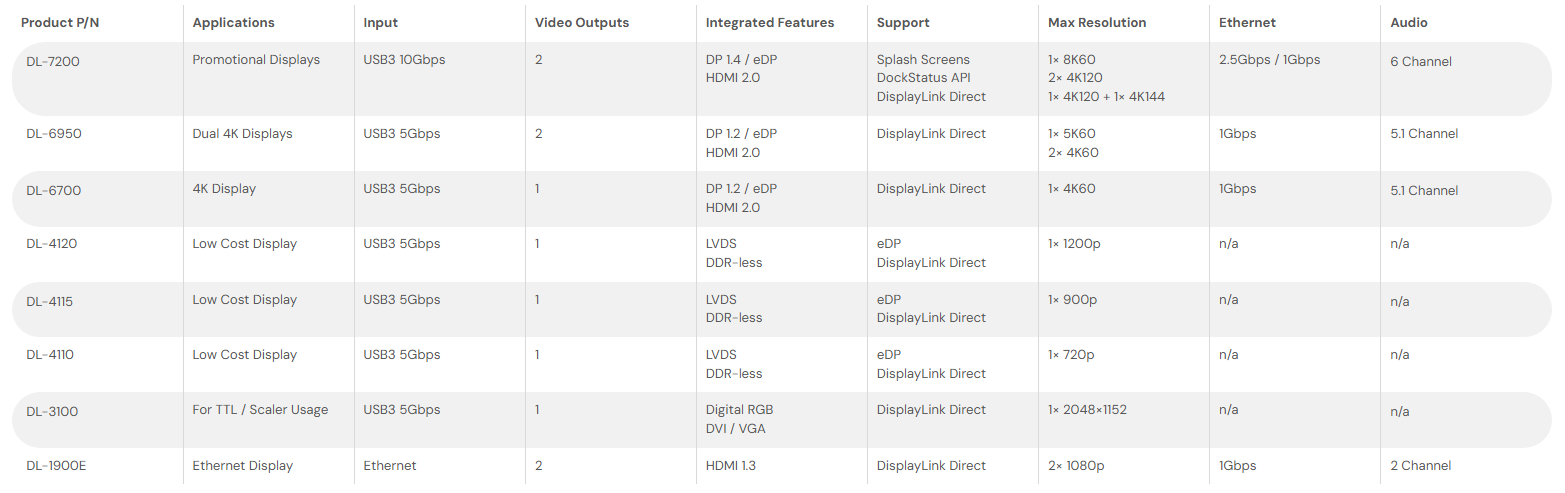

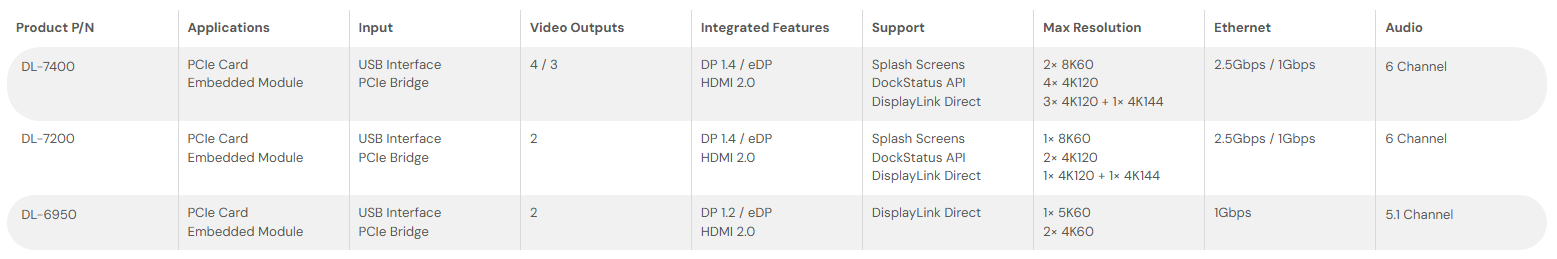

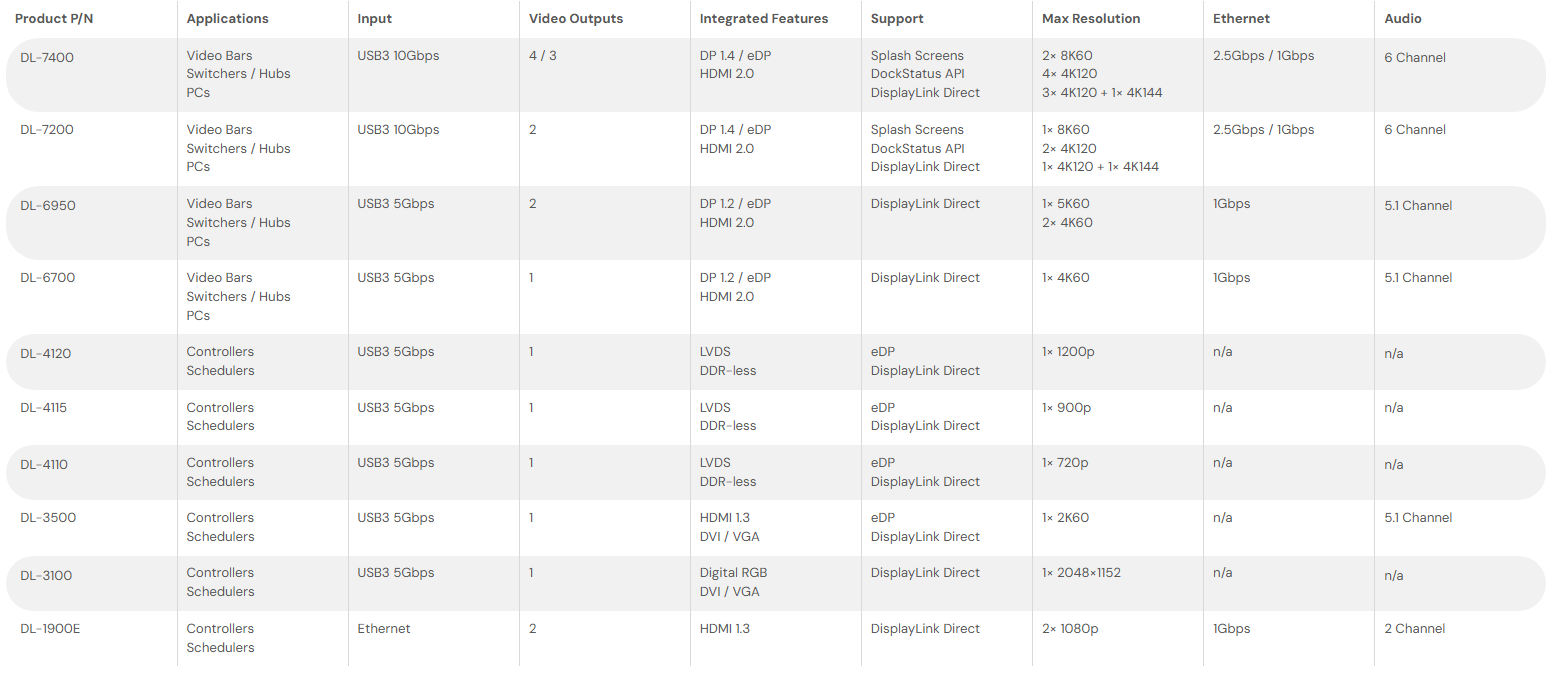

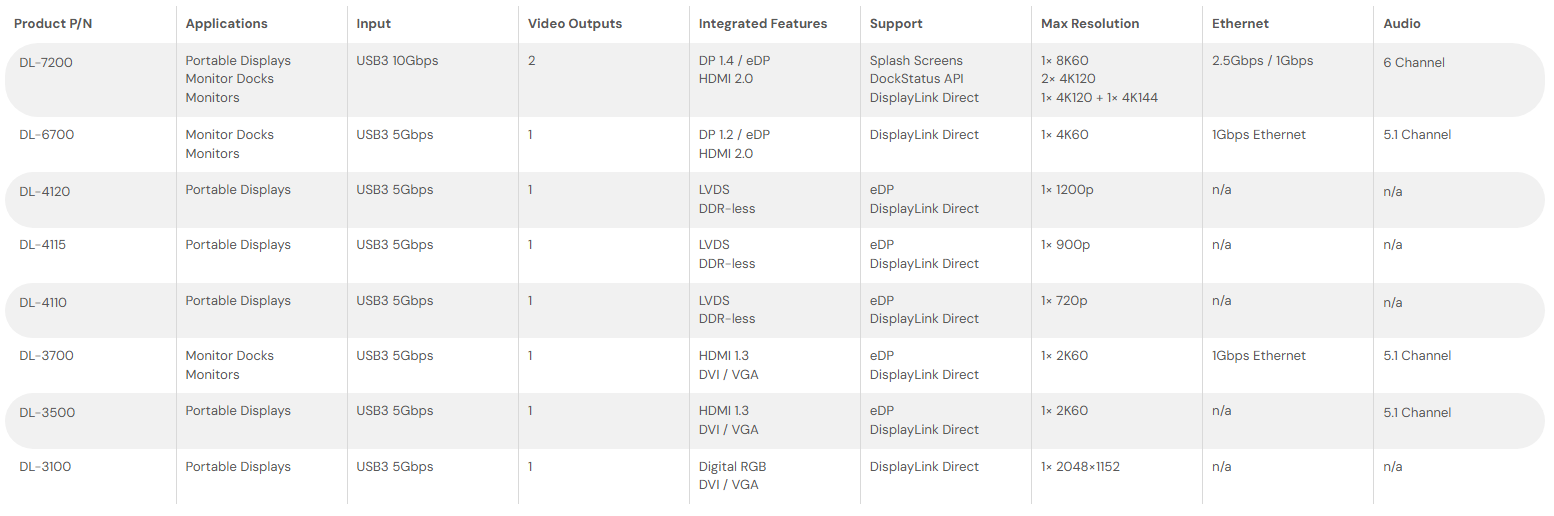

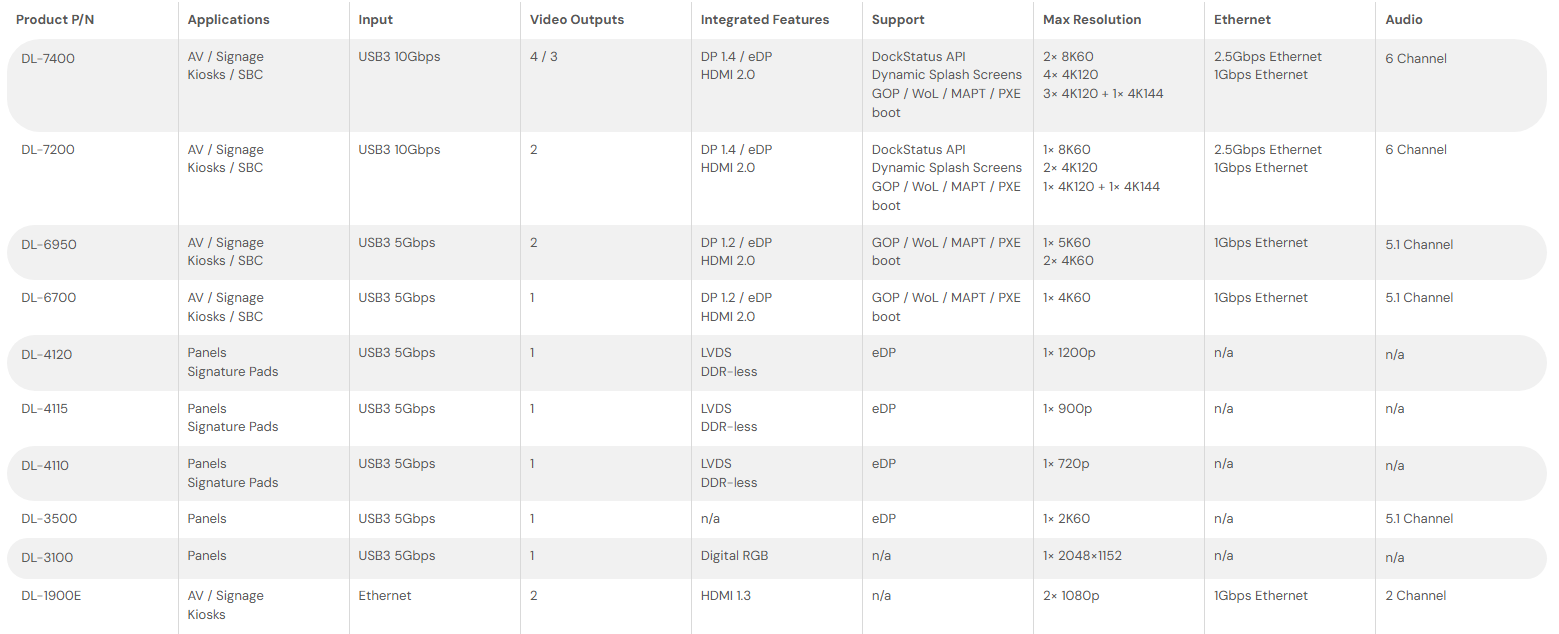

Compare Our Chipset Series
| Chipsets | Target Applications | Maximum Resolution | Supported Displays* | Integrated Network | Integrated Audio |
|---|---|---|---|---|---|
| DL-1950 | Dual 4Kp60 wireless docking stations | 3840×2160 (wireless) | 1-2 | 1Gbps Ethernet | 5.1 channels |

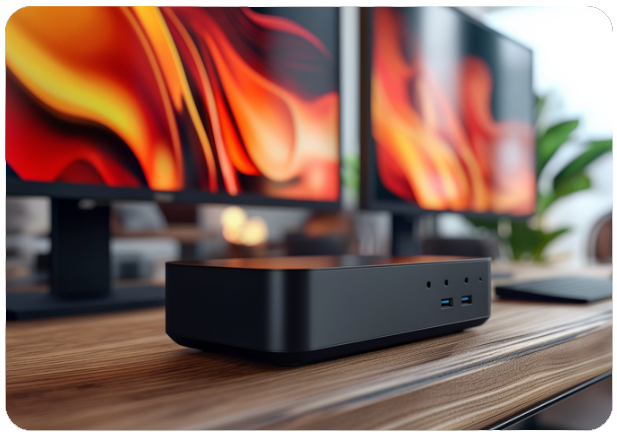

| DL-6000 | Dual 4Kp60/5K USB docking stations | 5120×2880 (DisplayPort) 4096×2160 (HDMI) | 1 – 4 | 1Gbps Ethernet | 5.1 channels |

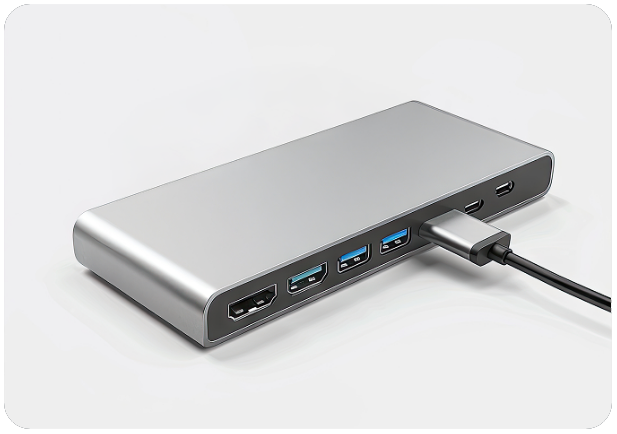

| DL-5000 | 4K USB3 docking stations and adapter | 3840×2160 (DisplayPort) 2560×1440 (HDMI) 2048×1152 (VGA/DVI) | 1 – 3 | 1Gbps Ethernet | 5.1 channels |

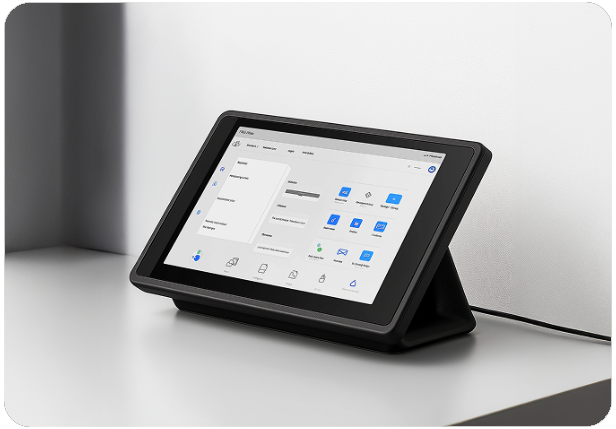

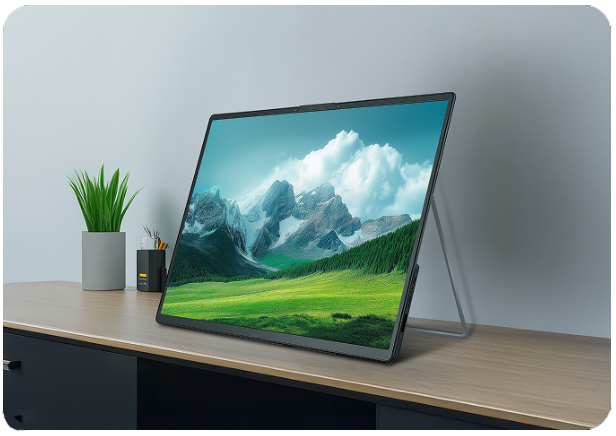

| DL-4000 | USB monitors Meeting room controllers | 1920×1080 (LVDS/eDP) | 1 | No | No |
| DL-3000 | Mid-range USB docking stations and adapters | 2048×1152 (VGA/DVI) 2560×1440 (HDMI) 2560×1600 (DisplayPort) | 1 – 2 | 1Gbps Ethernet | 5.1 channels |
| DL-1×5 | Entry level USB adapters and displays | 1920×1200 (DVI/VGA/TTL/LVDS) | 1 | No | No |
*DisplayLink enabled products can be chained together to expand connectivity where required.
